Haskell at CentralApp

Introduction

Ashesh

• Co-founder + CTO

• Ops

• Backend programming

• Design and architecture


Brecht

• was in your spot a few years ago

• graduated in 2019 from KUL CS - AI

• backend engineering intern at CentralApp since september


Agenda

1. About CentralApp

2. Architecture

3. Haskell at CentralApp

4. Benefits of using Haskell

5. Example?

6. Tooling

7. Starting as a Fresh Graduate

8. Outro


About CentralApp

What we do

• We're a SaaS that is aimed at SME's: we centralise + distribute data about the SME

  • online presence: reviews + social/public profiles

  • websites

  • online transactions: booking requests/emails/enquiries


And how we do it

• We're a small development team running and building a large product

  • 150k LOC: Scala and Haskell

  • N services in production

  • 2 backend devs: Brecht & I

  • millions of requests per day

  • 1000+ unique websites


Architecture

Overview

Diagram

A bit more detail

• Service groups: (as in the diagram)

• Functional programming: Scala + Haskell

• Decoupled:

  • SOA: services don't talk to each other over a sync. channel

  • Services exchange messages over a MQ (minimal coupling)

  • A service can run without others


Quasar

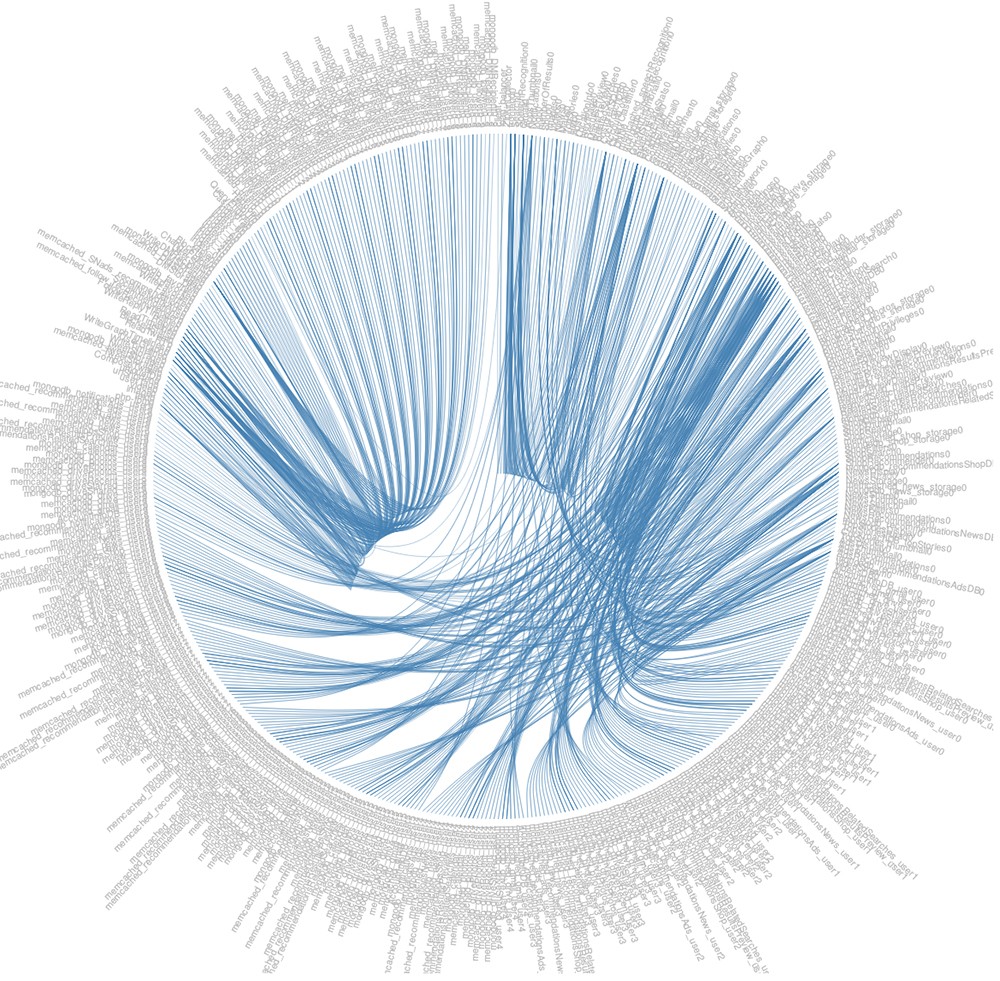

Death star

Enter Quasar

• Quasar is our answer to the death-star

• Quasar as "service-mesh" and API gateway: flattens out the death-star and removes inter-svc. deps.

  • we'll get to Quasar in more detail


Quasar: Overview

Haskell at CentralApp

Started with Scala, moved to Haskell: how, why

• Scala (4-5 years ago):

  • Haskell's tooling story wasn't great

  • we needed a product really fast

  • Scala let us use the JVM libs. in a safe way.

• Haskell (now):

  • I was the lone dev

  • I was looking to maximise productivity in a large codebase

  • I looked at safe (and pure) languages: Haskell


Haskell pilot project

• SSL engine (+ nginx)

• invoked on each website visit: MANY of times a day; thus high performance

• on the fly LetsEncrypt SSL issuance, renewal & verification

• was a massive success: 0 bugs till date.


Move to Haskell

• New services are written in Haskell

• Existing systems requiring major changes will be rewritten

• Service types:

  • API servers

  • Database access

  • Network infrastructure (distributed systems)

  • Image processing

  • …


How is Haskell used now

Quasar (more details)

• Quasar is our API gateway

• Avoids death-star
  Death-star, in simple terms, means every service can make API calls to other services. This has problems:

  1. Dependency chains

  2. Cycles: broken infra


Pipelines

• Uses Trees (acyclic) to describe each API endpoint, called pipelines:

  1. each node is an instruction to do one of:

     • proxy this request to some service

     • transform its input

     • pass its input (in ∥) to children

     • add input to accumulator (STM)

  2. input of a node: output of parent node;

     • root node input is the HTTP request

  3. output of a leaf node ↣ root accumulator


PlSteps (legend)

An example

Benefits

• this means services don't need to call one another

• Haskell's expressive type system and STM lets us do this elegantly!


Rest APIs using servant

First, the code

• Since we deal with API's all the time, Servant is a great tool in our arsenal:


-- Example servant route:
"login" :> Header "Authorization" AuthData :> Post '[JSON] AuthResult
-- Authentication result
data AuthResult = AuthSuccess UserInfo
                | AuthFailed Reason
data AuthData = UserToken ByteString  -- Authentication data

What this all means:

• HTTP request:


POST /login
Authorization: <UserAuthData>

• which will respond with a Haskell type that can be serialised to JSON format, AuthResult

• And this route will need to be handled by a function that matches the type of the route:


authUser :: UserAuthData -> AuthResult
authUser authData = do something

So what has happened here?

• We've defined our route at the type level:

  • compiler ensures type of route ≡ type of handler function.

• Runtime errors → compile time errors


Benefits of using Haskell

• Compiles to fast binaries ∴ low costs + happy customers

• Ultimate in safety: statically typed, functional, expressive and pure.

• best in class STM (Software transactional memory)

• Clean: function composition is trivial to read

• Has libraries like Servant & Lens

• Great type-system: we can effortlessly model things like Quasar pipelines

• Type inference: GHC is a clever and informed guesser.


The Maybe functor

var int myNullableInt = 10;
myNullableInt = null; // this perfectly ok
myNullableInt = 20; // also ok

// elsewhere in your code (also ok):
myNullableInt2 = myNullableInt + 1;

• what happens when myNullableInt is null and you're adding 1 to it?

  • BOOM: NPE (or if you're lucky, null may be treated as 0 depending on the whims of your language)


How can Haskell help us here?

• null is not a valid value


• we have Maybe Int instead of an Int that can randomly disappear on us


  data Maybe a = Just a | Nothing


• and Maybe is a Functor

• Thus we've avoided NPE


Wait, what's a Functor?

• as per Category Theory, a Functor is a mapping between categories (out of scope of this talk)


• tl;dr: it lets us do things like:


  -- say we have a function:
  func :: a -> b
  func = something
  -- and we have a functor f and a functor value:
  x :: f a
  -- the functor typeclass in haskell supplies us with a function called fmap:
  fmap :: Functor f => (a -> b) -> f a -> f b
  -- and now we can do this:
  fmap func x
  -- which will give us a
  value :: f b


Cool, but what about the NPE?

• Now we can do:


  -- say we have some value that is a Maybe Int
  x = Just 10
  -- in our previous example, we wanted to add 1 to the int, safely.
  -- so we can now do:
  fmap (+1) x
  -- this will give us: Just 11
  -- and what if we had a Nothing? That's fine too:
  y = Nothing :: Maybe Int
  fmap (+1) y
  -- this will give us: Nothing


Servant and Type-Safe APIs

Why

• control:

  • type of parameters

  • type of payload

  • type of response body

  • type of response codes


How

• encode this information at the type level
  => compiler checks for mistakes!

• with servant library


Example

type SecretSantaAPI
  = "api" :> "secretsanta" :>

    -- PUT request that accepts a `UnmatchedHat` payload and returns `Id`,
    -- both in JSON format
    (  ReqBody '[JSON] UnmatchedHat :> Put '[JSON] Id

    -- GET request that accepts an `Id` URL parameter and returns a hat
    -- if found
  :<|> Capture "id" Id :> Get '[JSON] (Maybe AnyHat)

    -- POST request that accepts an `Id` URL parameter and matches its
    -- hat if it exists
  :<|> Capture "id" Id :> "match" :> Post '[JSON] (Maybe SantaError)
    )

-- | The function that actually serves the API defined above.
secretSantaServer :: Server SecretSantaAPI
secretSantaServer = runServer
    $  putHat
  :<|> getHat
  :<|> matchHatById

GADTs and DataKinds

• lift runtime errs. to compile time errs.

• runtime checks: prone to being missed; relies on dev.

• compile time checks: your compiler enforces rules


A business example:

• datatype: Category

• Category.level: level0 or level1


• function required:


  addCategoryToBusiness :: Bus -> Cat -> Bus


  ∀ c.level == level1


Runtime based implementation:

data Lvl = L1 | L0
data Cat = Cat { name :: Text, lvl :: Lvl }
addCategoryToBusiness :: Bus -> Cat -> Bus
addCategoryToBusiness b c | lvl c == L1 = do something
                          | otherwise = do error

• possible to call addCategoryToBusiness with Cat with L0


Compile-time based implementation

• DataKinds: lift data-types to kinds (kinds ≊ types of types)

• eventually: lift business requirements to types

• we lift Lvl to the kinds level


Code:

data CatLvl (lvl :: Lvl) where
  CatL0 :: Cat -> CatLvl 'L0
  CatL1 :: CatLvl 'L0 -- parent cat.
        -> Cat -- the L1 cat
        -> CatLvl 'L1
-- thusly:
addCategoryToBusiness :: Bus -> CatLvl 'L1 -> Bus
-- compile err:
addCategoryToBusiness (undefined :: Bus) (undefined :: CatLvl 'L0)

IO monad

Why

• separate pure functions and code with effects

• easy tracking of where things can go wrong


How

• IO monad

• run as little code in IO as possible


STM

STM monad allows elegant locking and transactions

• concurrency: compose STM actions on guarantees of atomicity

• locking: reads/writes are completely atomic

• resources can be held/released, locking is out of the box.


• Drop to IO:


  atomically :: STM a -> IO a


• great for maintaining a mutable state

  • Quasar pipelines

  • on-the-fly config. (used across svcs) (no redeployments/env-vars)


ReaderT pattern

Why

• environment that we want to access or modify at runtime

  • configuration values

  • mutable state

  • manager for open http connections

• don't want to pass all values as parameters
  => use ReaderT pattern


How

• Reader monad Reader r a:

  • implicitly pass an immutable value of type r


  • get the value with


    ask :: Reader r r


• ReaderT monad transformer ReaderT r m a:

  • add Reader capabilities to another monad m


ReaderT pattern

• ReaderT pattern:

  • transformer stack: ReaderT Env IO

  • Env datatype contains our application values

  • read-only values: standard attribute

  • read-write values: use a TVar (with STM from previous part)


=> Env stores read-only pointer, we modify the value at the pointer

Example: Runtime environment

-- | The memory is simply a map of Ids to Hats
type Memory = Map.Map Id AnyHat

-- | The environment contains a mutable variable to the memory
newtype Env =
  Env
  { envMemory      :: TVar Memory
  , envName        :: String
  , envHttpManager :: HttpManager
  }

-- | Create an empty environment
emptyEnv :: IO Env
emptyEnv = do
  mem <- newTVarIO Map.empty
  let name = "my app name"
  mgr <- newHttpManager
  return $ Env mem name mgr

Example: ReaderT usage

putHat :: UnmatchedHat -> ReaderT Env IO Id
putHat h = do
  let anyhat = AnyHat h
  tvar <- envMemory <$> ask
  lift . atomically $ stateTVar tvar $ \mem ->
    let n = Map.size mem
    in  (n, Map.insert n anyhat mem)

Example

Secret Santa API server:

• github.com/centralapp/secret-santa

• please ask questions


Tooling

Stack, cabal

• Cabal:

  • standard Haskell build tool

  • takes code, tries to solve dependencies, tries to build

  • cabal hell


• Stack:

  • tries to solve cabal hell

  • uses snapshot
    => set of packages that are known to work together

  • Just Works™


Nix

Nix

• package manager for Linux/UNIX

• reproducible packages

• easy build environments

• same build environment on different machines
  => just copy the configuration.nix to the other machine and build

• NixOS: Linux distro built around Nix


Derivations

• specify how packages are built

• are 'programmed' in the Nix language
  => pure functional language


IDE/Editors

Editor Integration:

Formatting/linting

• Lint: hlint

• Formatters:

  • stylish-haskell

  • brittany

  • ormulu


Starting as a Fresh Graduate

Downsides

• steep learning curve

• be prepared to understand far too little of the code you read

  • Haskell extensions

  • custom operators

  • weird type stuff

• not a lot of job opportunities in Belgium
  => we'd like to change that


Upsides

• compiler gives you confidence when trying new stuff

• saves you a lot of debugging

• you do not want to know how many unit tests we have (hint: far too little)

• beautiful


Outroduction

• questions?

• presentation: centralapp.github.io/backend-tech-talks/2019.12.09-kuleuven/

• presentation code: github.com/centralapp/backend-tech-talks/tree/master/2019.12.09-kuleuven

• example code: github.com/centralapp/secret-santa
